Electrical Junction Boxes
Reliable Electrical Junction Box Manufacturer for Safe and Efficient Wiring Solutions
Electrical Junction Box Manufacturer specializes in designing and producing essential enclosures that safely house wiring junctions, allowing seamless connections to the main power supply provided by local utilities. These boxes play a critical role in both functionality and safety, offering a neat, protected solution that is far more aesthetically pleasing than exposed electrical wiring. A professional electrical junction box manufacturer ensures that each box meets industry standards and is built to handle various environmental conditions, providing durability and long-term performance.
Various rated & type of TERMINAL configuration
(2 way to 2500 way.)
(From 1.5 mm Sq. to 100 mm Sq.)
as well as GLANDS
According to customer requirements
FRP / SMC JUNCTION BOXES are made out of impact proof glass fiber reinforcement specially formulated polyester resin provides:
- Corrosive resistant
- Dent Poof surface
- Long Life.
- Withstand in extreme climate
- Very less thermal expansion so high degree of dimensional accuracy.

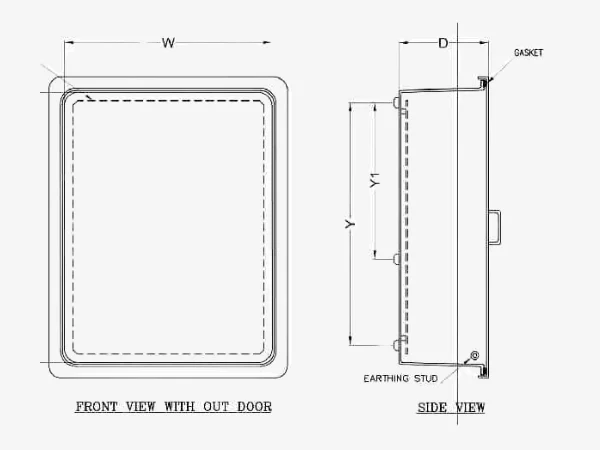

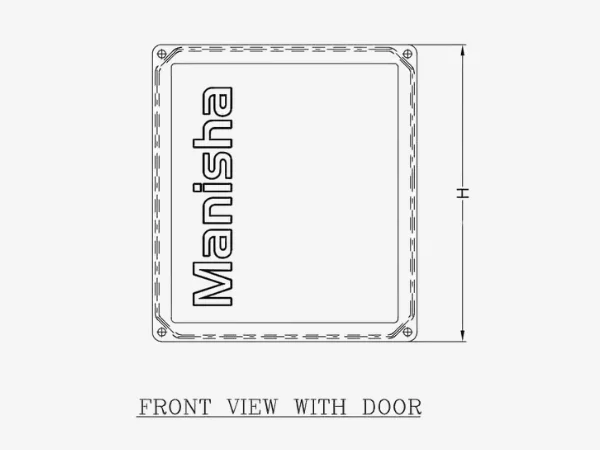

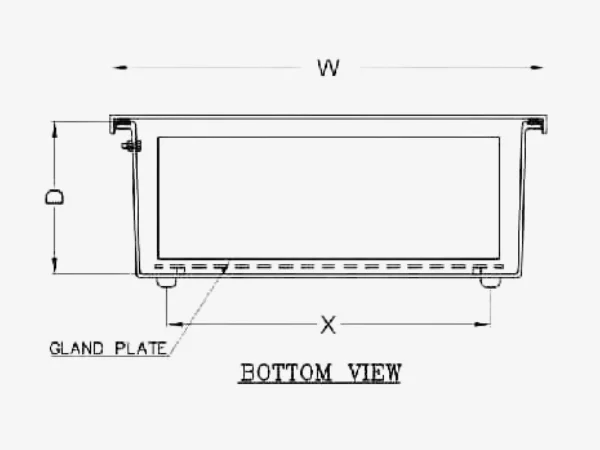

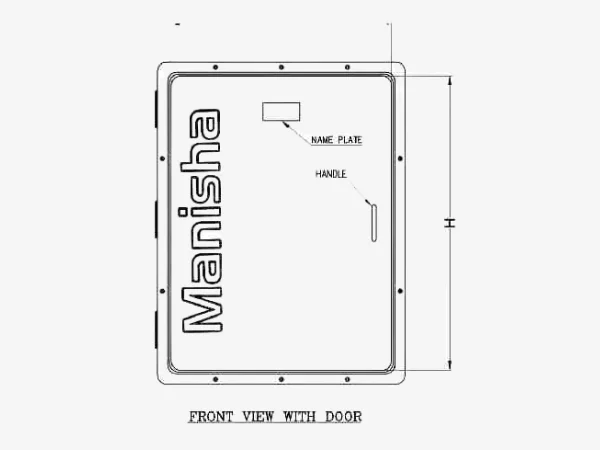

| MCPL Code | W | H | D | X | Y | Y1 |
|---|---|---|---|---|---|---|
| MCFJB001 | 120 | 160 | 150 | 85 | 125 | NA |
| MCFJB002 | 130 | 170 | 85 | 130 | 90 | NA |
| MCFJB003 | 150 | 200 | 300 | 100 | 150 | NA |
| MCFJB004 | 170 | 300 | 180 | NA | NA | NA |
| MCFJB005 | 210 | 260 | 120 | 140 | 185 | NA |
| MCFJB006 | 210 | 150 | 150 | 150 | 100 | NA |
| MCFJB007 | 220 | 350 | 150 | 145 | 280 | NA |
| MCFJB008 | 220 | 420 | 150 | 145 | 345 | NA |
| MCFJB009 | 240 | 250 | 120 | 150 | 155 | NA |
| MCFJB010 | 260 | 340 | 120 | 200 | 275 | NA |
| MCFJB011 | 260 | 330 | 120 | 210 | 285 | NA |
| MCFJB012 | 300 | 500 | 150 | 225 | 425 | NA |
| MCFJB013 | 300 | 400 | 150 | 250 | 360 | NA |
| MCFJB014 | 475 | 320 | 155 | 420 | 250 | NA |
| MCFJB015 | 340 | 490 | 190 | 280 | 440 | NA |
| MCFJB016 | 350 | 325 | 125 | 300 | 260 | NA |

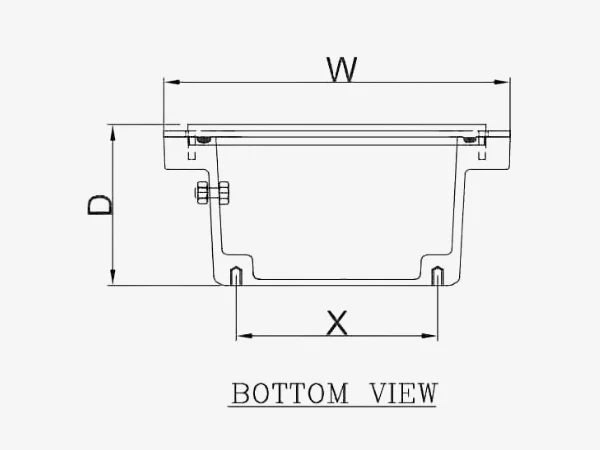

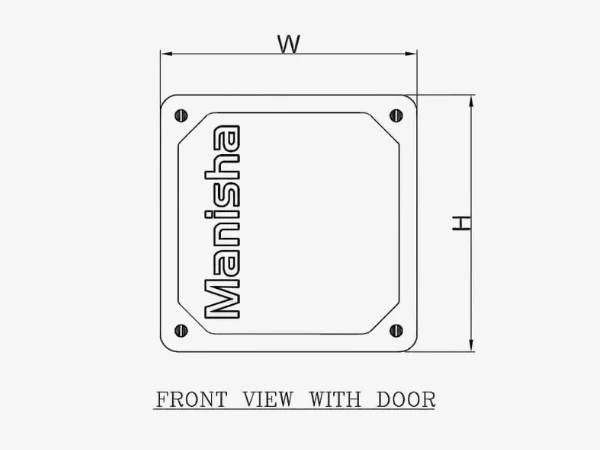

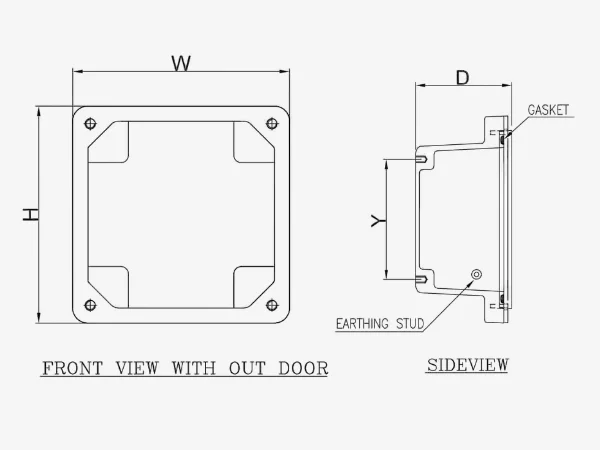

| MCPL Code | W | H | D | X | Y |
|---|---|---|---|---|---|
| MCFLB001 | 150 | 150 | 85 | 125 | 125 |
| MCFLB002 | 170 | 130 | 85 | 130 | 90 |
| MCFLB003 | 170 | 130 | 120 | 130 | 90 |
| MCFLB004 | 190 | 190 | 85 | 160 | 160 |

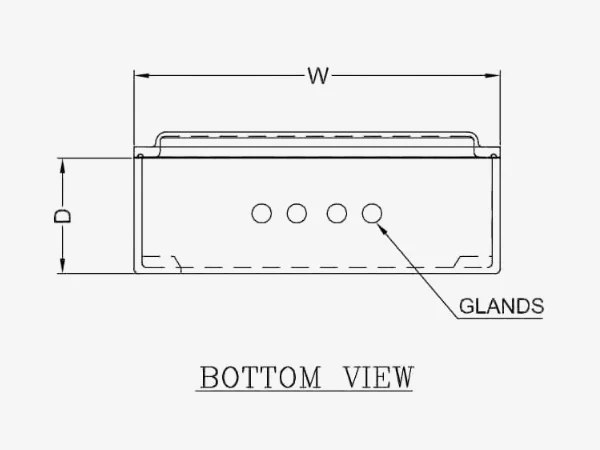

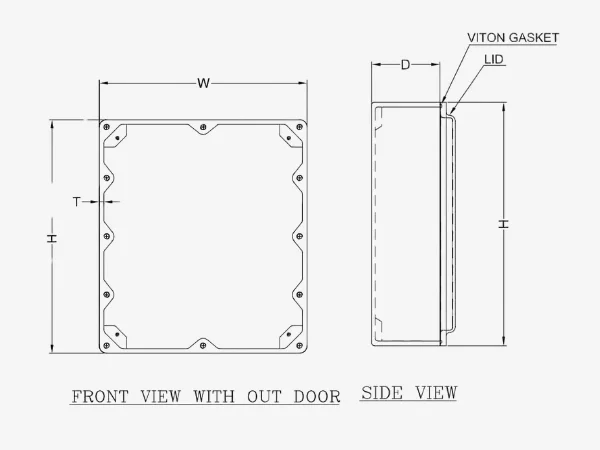

| MCPL Code | W | H | D | T | X | Y |
|---|---|---|---|---|---|---|
| MCFEEB001 | 250 | 370 | 115 | 8 | 220 | 340 |
| MCFEEB002 | 470 | 620 | 260 | 8 | 440 | 590 |

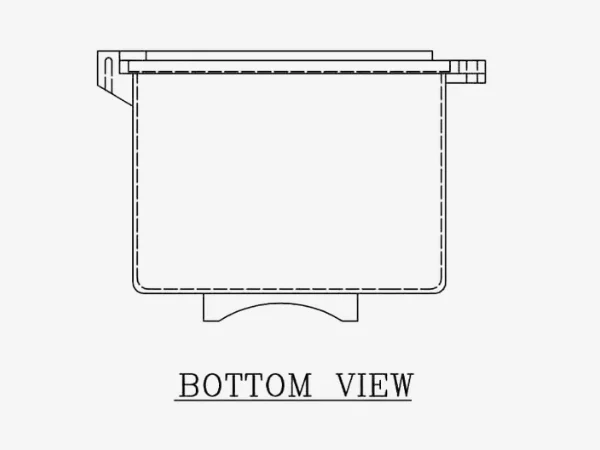

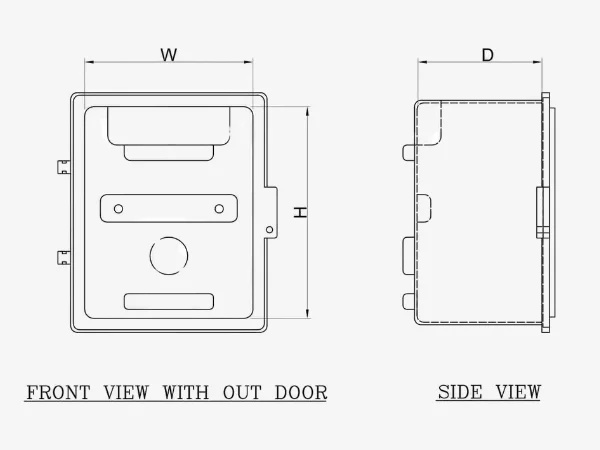

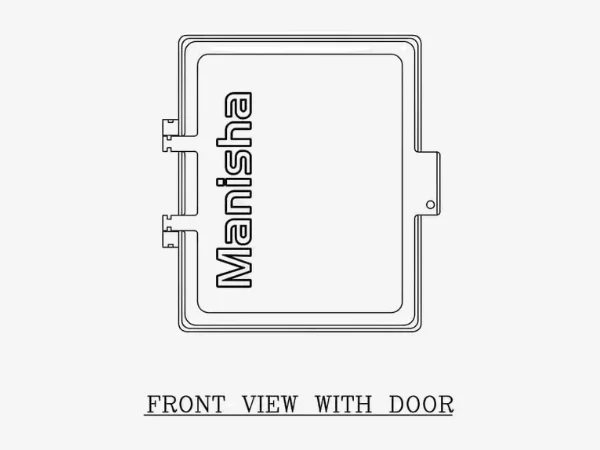

| MCPL Code | W | H | D |
|---|---|---|---|
| MCFPB001 | 100 | 150 | 50 |
| MCFPB002 | 150 | 180 | 100 |
| MCFPB003 | 250 | 370 | 120 |
| MCFPB004 | 290 | 410 | 120 |

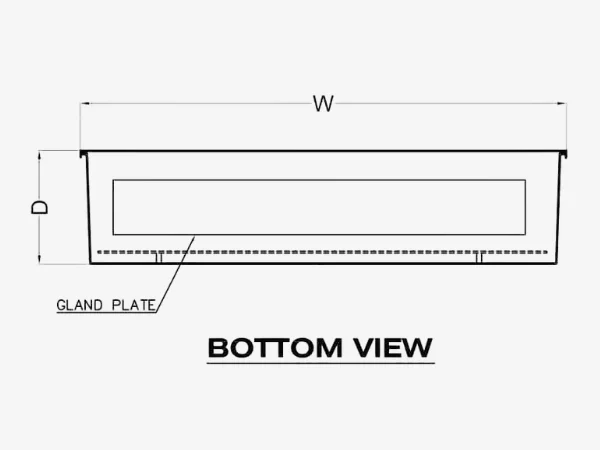

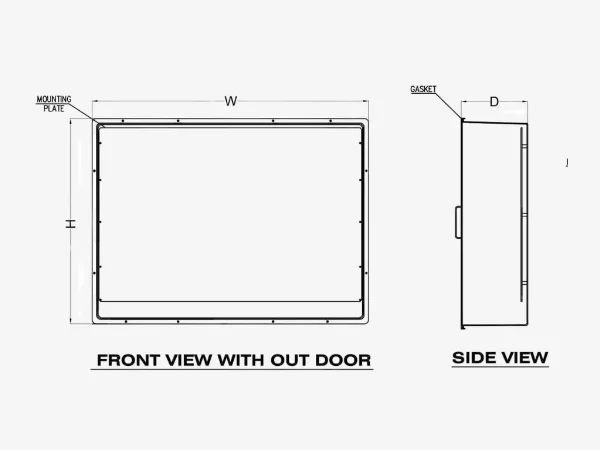

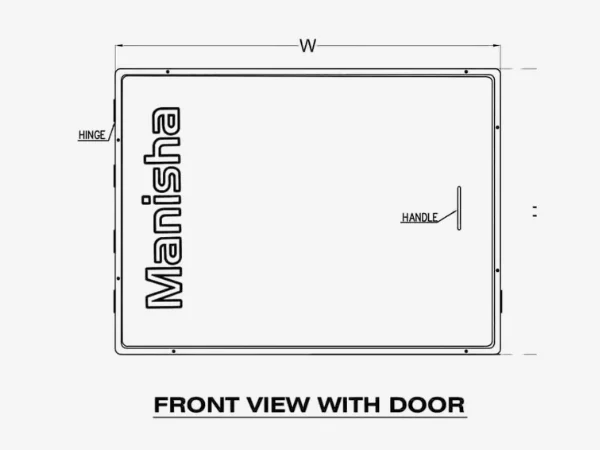

| MCPL Code | W | H | D | Remarks |
|---|---|---|---|---|
| MCFDB001 | 420 | 420 | 160 | Single door |
| MCFDB002 | 500 | 500 | 200 | Single door |
| MCFDB003 | 500 | 650 | 200 | Single door |
| MCFDB004 | 650 | 650 | 200 | Single door |
| MCFDB005 | 800 | 750 | 300 | Single door |
| MCFDB006 | 1770 | 1310 | 415 | Double door |

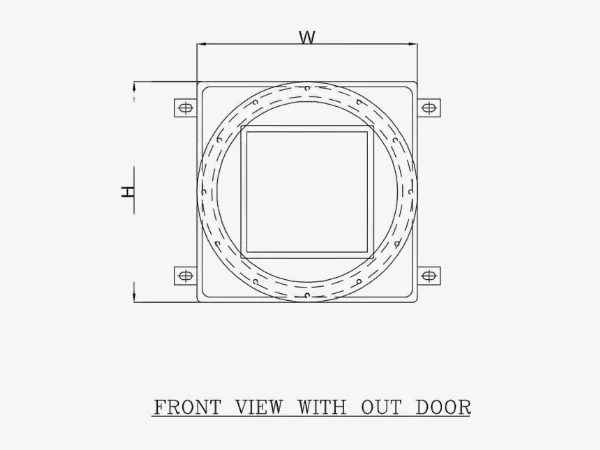

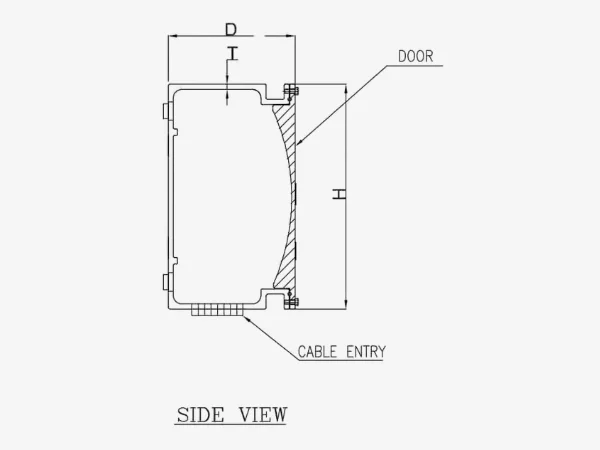

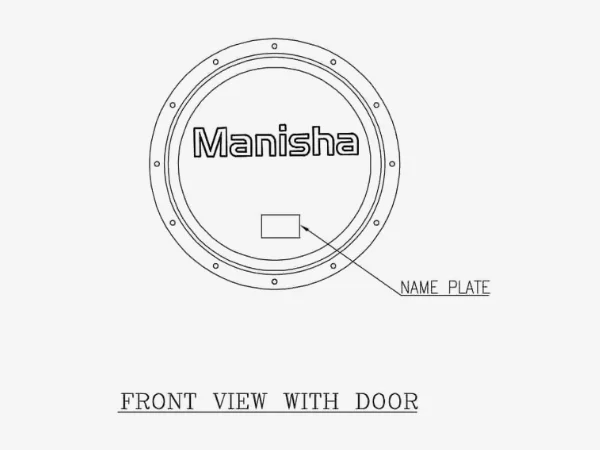

| MCPL Code | W | H | D | Remarks |
|---|---|---|---|---|
| MCADB001 | 350 | 350 | 250 | Square door |
| MCADB002 | 400 | 400 | 170 | Square door |
| MCADB003 | 500 | 500 | 220 | Square door |
| MCADB004 | 540 | 540 | 300 | Round door |
